U-Type Dental Implant

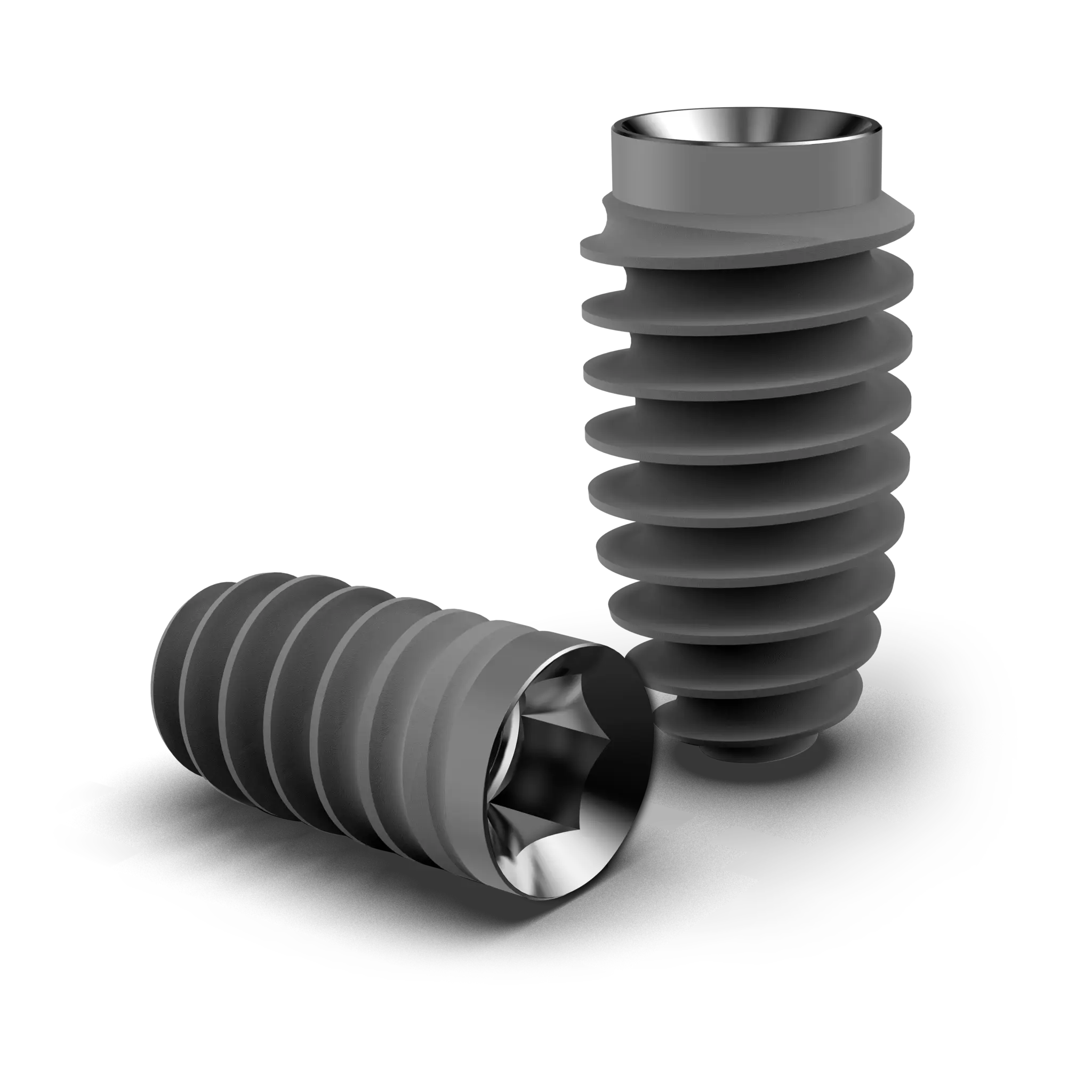

SURCAM® U-TYPE DENTAL IMPLANT

Precision-Engineered for Immediate Stability
in Every Bone Type

SHOP IMPLANTS
Contact US

The U-Type Advantage

Clinical Precision Meets Engineering Excellence

The Surcam® U-Type Dental Implant System is a tapered, self-cutting implant designed for immediate stability and long-term success in all bone types.
With its knife-thread design and condensing geometry, it provides powerful mechanical anchorage, enabling immediate placement and loading even in soft or compromised bone.

The U-Type system streamlines every step — from osteotomy to restoration — offering predictable torque control, shorter chair time, and a universal internal-hex 2.43 mm connection compatible with leading implant platforms.

  • Available Diameters: Ø3.8 mm | Ø4.2 mm | Ø5.0 mm
  • Available Lengths: 6 mm | 8 mm | 10 mm | 11.5 mm | 13 mm | 16 mm
  • Connection: Internal Hex 2.43 mm (Standard Platform)
  • Material: Titanium Grade 5 (Ti-6Al-4V ELI)
  • Surface: SLA (Sand-Blasted, Large-Grit, Acid-Etched)
  • Insertion Torque: ≤ 50 N·cm
1

2

3

4

5

6

U-TYPE Dental Implant
Key Features & Clinical Benefits

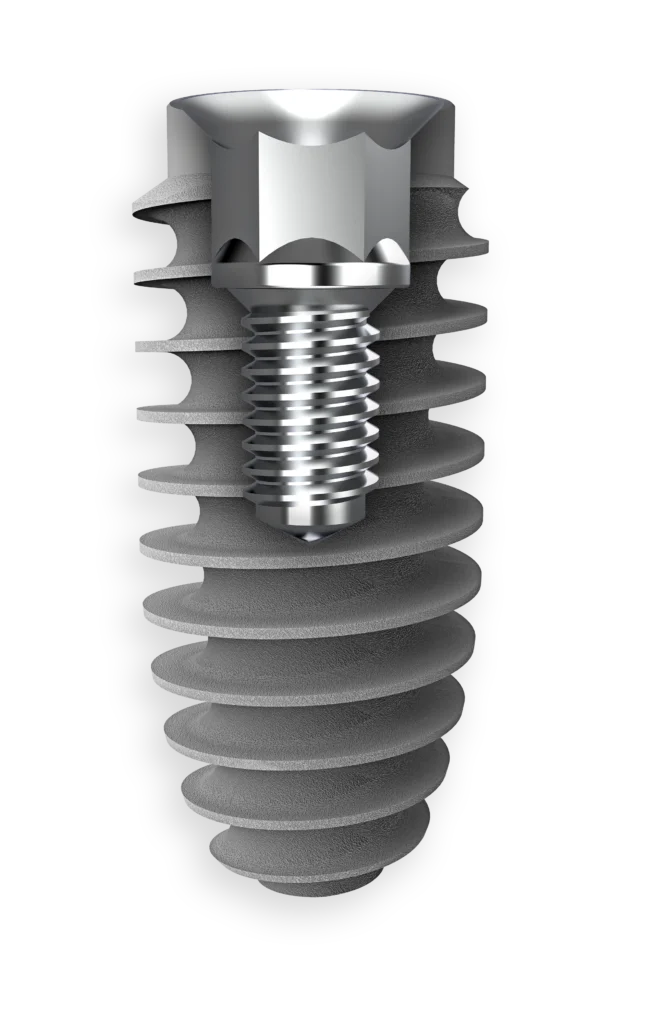

Internal Hexagon – 2.43 mm

Provides a secure, precision-fit interface for restorative components, ensuring mechanical stability and long-term reliability.

1.0 mm Neck

Short, polished neck promotes soft-tissue health and a clean emergence profile for optimal esthetic integration.

Parallel Threads & Core

Designed for uniform load distribution and predictable torque control across all bone densities.

Surface SLA Sand-Blasted & Acid-Etched

Micro-roughened SLA surface enhances bone-to-implant contact, accelerating osseointegration and healing.

Coarse Knife Threads

Aggressive thread geometry condenses bone during placement, achieving excellent primary fixation in D1–D4 bone types.

Anchoring Apex

Self-tapping apex facilitates controlled insertion and maximum primary stability, even in soft or compromised bone.

“The U-Type gives me reliable stability, even in softer bone where most systems struggle. Its knife-thread design condenses bone efficiently, so I get solid primary fixation with minimal torque adjustment. The surgical protocol is straightforward, and the SLA surface response has been very consistent in early loading cases. It’s a strong, dependable implant that performs predictably across different bone types.”
Dr. Eran ShomerDMD, Israel
Dr. Eran Shomer

Catalogs and resources

U-TYPE Implant Catalog

Comprehensive guide detailing implant geometry, surgical features, and connection specifications across available sizes. Covers design concept, clinical indications, size chart (Ø3.8–Ø5.0 mm, 6–16 mm), and drilling protocols.

PRO GRIP Implant System Catalog

Full system overview covering Surcam’s Internal Hex platform - including implants, abutments, multi-units, Ti-bases, transfers, analogs, surgical kits, and drilling protocols.
